Transform your speakers into wireless wonders
with a single connection.

Mutracks (Server unit: MT-SA0, Client unit: MT-CS0) is a Wi-Fi audio system designed
to wirelessly stream music from a single source to multiple speakers.

The server unit digitalizes input audio data and transmits it via
a wireless LAN to over 10 client units, boasting an impressive range of over 100 meters.
The client units synchronize with each other using a proprietary algorithm,
ensuring that even when multiple speakers are arranged together,
there is no discomfort or discrepancy in timing.

TECHNOLOGIES

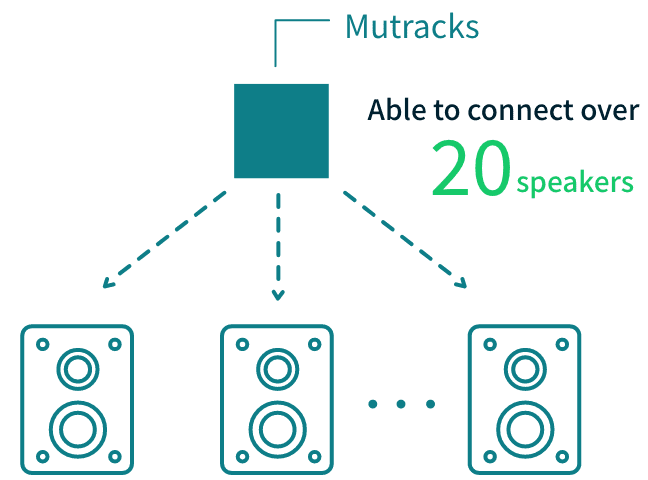

  • Able to connect more than20speakers

    When it comes to wireless music transmission, Bluetooth connections are commonly used. However, Bluetooth does not allow sound to be distributed to multiple speakers from a single audio source. Mutracks can distribute music to over 20 speakers, removing constraints on the layout of the audio source and speakers.*

    * Applies when connecting two analog speakers per one client unit.

  • Audio can be transmitted to speakers
    located over100maway

    Mutracks utilizes Wi-Fi to transmit audio, not Bluetooth. Operating on the 5GHz Wi-Fi frequency, it is less susceptible to interference from other wireless devices.
    This capability allows Mutracks to deliver audio to speakers located more than 100m away, which is challenging to achieve with Bluetooth technology.

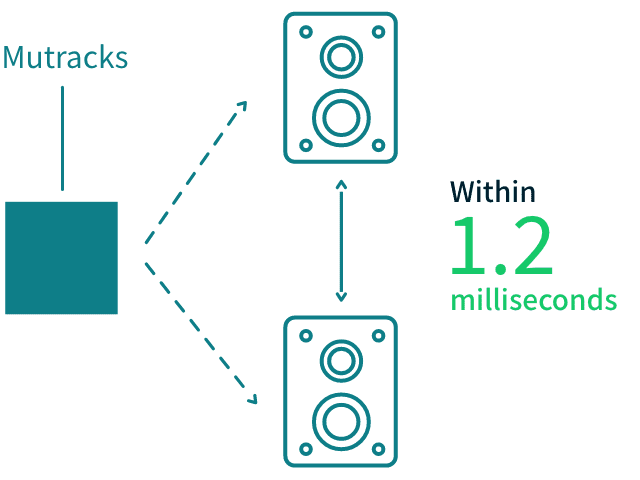

  • Control over sound latency is maintained
    within1.2milliseconds.

    Mutracks incorporates a proprietary algorithm to reduce playback sound latency.
    The maximum latency difference between each speaker is 1.2 milliseconds, ensuring seamless experiences even when multiple speakers are arranged together.

FUNCTIONS

  • Analog Input
    Equipped with a 3.5mm stereo input terminal, allowing connection to devices such as smartphones and computers.
  • Speaker Terminal Output
    Using speaker cables allows for playback on analog speakers.
  • USB Speakers Output
    Supporting USB Type-A ports enables the attachment of USB speakers.
  • Audio Playback from microSD
    The server unit is equipped with audio player functionality, allowing music playback even without a PC or smartphone.
  • Respond to each format
    Supporting a wide range of music formats, including MP3, AAC, FLAC, and even DSD.
  • High-Resolution Transmission
    Enables playback without compromising sound quality by avoiding the use of lossy compression codecs during sound transmission.
  • Multi-Channel Playback
    Able to play multi-track audio sources by switching channels using a dip switch.
  • Alarm Function
    Features an alarm function enabling music playback at a scheduled time.

PRODUCT DETAILS

  • Server unit : MT-SA0

    Front side

    Back side

    • 1Toggle Switch
      For playback using microSD.
    • 24 bit DIP Switch
      Switch Wi-Fi SSID and select the connection channel for both the server unit and the client units.
    • 3microSD Slot
      Insert a microSD with audio source files for playback.
    • 4USB Type-A Port
      Connects Wi-Fi dongle.
    • 53.5mm Stereo Input Jack
      Connects Smartphone or PC.
    • 6microUSB Port
      Powered by a PC, Mobile battery, etc.

  • Client unit : MT-CS0

    Front side

    Back side

    • 1Speaker Terminal
      For connecting Speaker cable.
    • 24 bit DIP Switch 1
      Switch Wi-Fi SSID.
    • 34 bit DIP Switch 2
      Set the playback channel during the multi-track playback.
    • 4USB Type-A Port 1
      Connects Wi-Fi dongle.
    • 5USB Type-A Port 2
      Connects the USB speaker.
    • 6AC Adapter Power Port
      Supply power with the included AC adapter.

  • Accessories

    Remote Controller

    Enables control of playback,
    loop playback, and switching between audio source files on microSD Audio.

    Wi-Fi Dongle

    Enables communication between the server unit and client units through Wi-Fi.

HOW TO USE

  • If connecting to existing
    analog speakers...

    Connecting the speaker cable from the analog speakers to the speaker terminal of the client units allows you to play music.

  • If connecting to existing
    USB speakers...

    It is incredibly easy to use. Simply connect your device containing saved audio data to the server unit via USB. There is no need for additional cables, and the setup is hassle-free.

  • If playing audio from
    a microSD Card...

    To play music, insert a microSD Card with audio files into the server unit, and utilize the included remote controller or the onboard toggle switch.
    You can easily control features like loop playback and switch between audio files using the remote.

Advantages of chosing Mutracks

Mutracks offers a solution to the challenge of uneven sound when using a single speaker.
Concerned about the complexities of wiring while installing multiple speakers?
Mutracks has you covered. With a wireless control range of up to 100m, wiring becomes minimal even when setting up multiple speakers.
This setup flexibility greatly expands your options, making it ideal for BGM distribution, covering wide indoor areas without sound delay.
Already successfully adopted and well-received in offices, restaurants, clinics, and various facilities,
Mutracks ensures a consistently pleasant and evenly distributed acoustic environment, enhancing the audio experience from any location.

  • If connecting 1 speaker:

    The sound quality can vary
    depending on the location.

  • If connecting Mutracks:

    The sound evenly fills the entire space.

USE CASES

The applications of Mutracks extend beyond indoor facility BGM and events.
It can be used extensively for purposes such as alert signals and abnormal sound confirmation in
factories, announcement across entire spaces, and more, without concern about placement.
We have a proven track record of successful implementations across various companies!
Feel free to reach out for any inquiries.

  • Factories
    Delivering various alert sounds output from the equipment.
  • Offices
    Automatically play scheduled items such as the closing chime and radio calisthenics at predetermined times.
  • Outdoor events
    Easy and secure with no intermediate wiring for safety. Effortless setup and removal for added convenience.
  • Stores
    Covering a wide range without the need for wiring. Delivering music seamlessly to indoor spaces like cafes and even terrace seating.
  • Fireworks Display
    Combining fireworks and music for cohesive and immersive events.
  • Choir Rehearsal
    Connect headphones to each unit,
    delivering a single audio source to everyone. Ideal for practices like brass band rehearsals.

If using Relavas

  • What is Relavas

    We developed the Relaxation Canvas, "Relavas," a network speaker that supports native playback at 96kHz 24-bit through Wi-Fi, enabling wireless music playback.

  • How to Use

    The Relavas comes with built-in server and client units for Mutracks, allowing for instant playback by simply connecting power and Wi-Fi. Its stylish appearance has garnered positive feedback from customers operating facilities and stores.

  • For those considering a purchase

    We also provide Relavas bundled with Mutracks. If you are interested, kindly indicate your preference when making an inquiry.
